1. 3 Axes Scatter (Bubble Chart)

By using the SCATTER header, can also create 3 Axes Scatter which is generally called Bubble Chart. This “3 axes” means the x axis, the y axis and the z axis. On the z axis, the data are represented as varying sizes of symbols. (At this point, z data are sorted on drawing order not to hide small symbols behind large ones.) In following parameters, you can specify character-based labels (STR:), x data (X:), Y data and Z data(Z:) with the those column numbers, which start from 0, respectively. (For 3 Axes Scatter, the Scatter header cannot have the y2 parameter.)

The maximum and minimum values for z data are drawn beside the position of the z axis label.

(In Data part)

SCATTER STR:0 X:3 Y:4 Z:6
    :
_END_
Spain 3909 505 14020 2526 73.9 82 13.4
Holland 1518 41 20590 7210 30.2 311 12.8
France 5737 552 22300 3996 212.6 210 14.2
"New Zealand" 341 271 12140 4996 99.8 324 11.2
    :

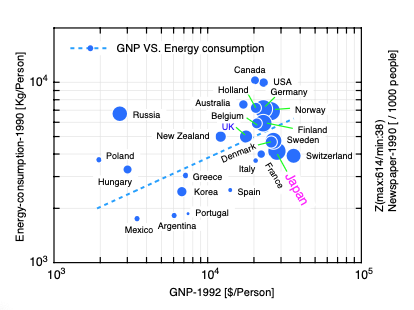

(An example graph for 3 Axes Scatter (Bubble Chart))
